Monel K500 bars resist seawater corrosion, high mechanical loads, and erosion, making them ideal for demanding marine applications. Monel K500 bar is specified for marine components where standard corrosion-resistant alloys reach their performance limits. Its precipitation-hardenable nickel-copper composition delivers corrosion resistance comparable to Monel 400 alongside mechanical strength that unstabilized nickel-copper alloys cannot match, a combination that makes it particularly practical for rotating shafts, fasteners, and pump components in continuous seawater service.

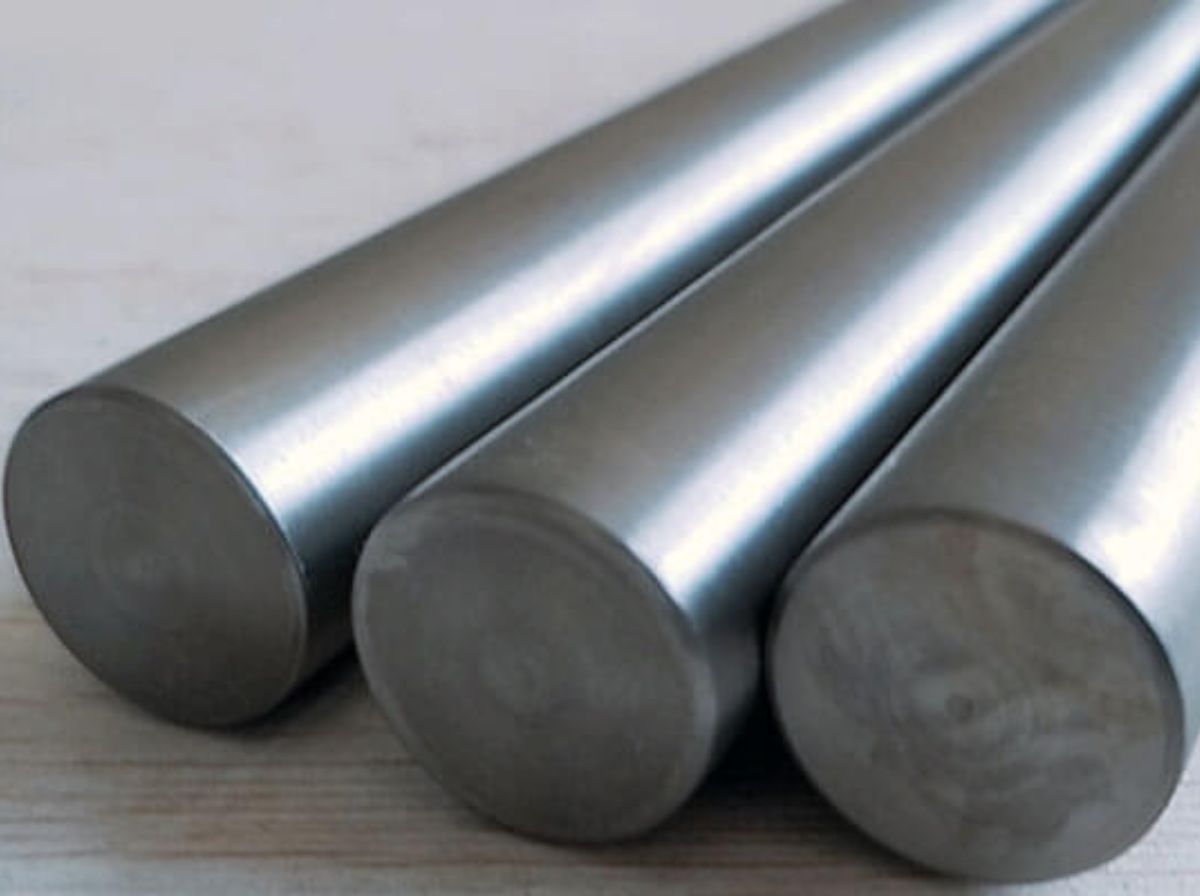

What Is Monel Alloy K500 Bar?
Monel Alloy K500 Bar is manufactured from UNS N05500, a nickel-copper alloy containing the same base composition as Monel 400, approximately 63–70% nickel and 20–29% copper with aluminium (2.30–3.15%) and titanium (0.35–0.85%) additions that enable precipitation hardening. Unlike Monel 400, which achieves its mechanical properties through cold work or hot forming alone, K500 undergoes a controlled aging heat treatment that produces fine precipitates dispersed through the matrix, raising yield strength to approximately three times that of annealed Monel 400. The corrosion resistance profile remains essentially unchanged by the aging treatment, which is why K500 suits applications where Monel 400’s corrosion performance is required but its strength is insufficient.
Key Properties of UNS N05500 Bars
UNS N05500 bars provide the excellent corrosion resistance of conventional nickel-copper alloys with the added benefit of much higher mechanical strength by precipitation hardening. The material has a balanced performance profile, and it becomes an essential component for high-stress structural components working in harsh marine and industrial settings.
- The material withstands localized pitting and general degradation in stagnant and moving seawater, brackish conditions and salt spray without the usual limits of stainless steel.
- Age hardening produces very high yield and tensile strength. This allows engineers to build smaller, lightweight parts that will reliably handle heavy structural design loads.
- High impact toughness is kept in conjunction with high yield strength, which prevents brittle failures even after long term operation under permanent dynamic stresses and cycle fatigue.
- The improved resistance to chloride stress corrosion cracking ensures long term operating integrity in maritime splash zones, coastal atmospheric conditions and continual deep water immersion.
Benefits of Monel K500 Bar in Marine Applications
Durability in continuous seawater exposure without coating or cathodic protection reduces maintenance requirements for marine components that are difficult to access during service pump internals, submerged shaft sections, and subsea fasteners all benefit from the alloy’s self-protective behaviour in seawater.
Mechanical strength for load-bearing marine components allows K500 to serve in shafts, propeller components, and structural fasteners where Monel 400’s strength is insufficient, eliminating the need to specify a different alloy family for strength-critical components in the same corrosive environment.
Resistance to erosion-corrosion in high-velocity seawater flow a condition that strips protective films from less resistant alloys and accelerates material loss means K500 maintains its properties in pump impellers, impeller wear rings, and other components where fluid velocity compounds the corrosive attack.
Non-magnetic properties in the annealed condition are retained through the aging process in most K500 applications relevant for marine and offshore equipment where magnetic materials create interference with instrumentation.
Marine Applications of Monel K500 Bars
Monel K500 bars are great for tough marine and subsea applications because to their superb corrosion resistance and high yield strength.
- Propeller Shafts: Fatigue and corrosion resistant to seawater, due to the constant cyclical stresses from the propulsion systems.
- Pump Components: Protect impellers and worn rings from high velocity of fluid and mechanical stresses.
- Valves and Fasteners: Ensure long-term joint integrity for bolting and trimming in permanent contact with sea water.
- Subsea Hardware: Prevents expensive offshore failures by safeguarding critical structural pins and connectors.
- Oil & gas equipment: Prevents the corrosion of downhole tools and wellhead components exposed to harsh sour gas and produced water environments.
ASTM B865 Monel K500 Bar: Standards & Selection
ASTM B865 governs the composition, mechanical property requirements, and testing procedures for UNS N05500 rod and bar. The heat treatment condition solution annealed versus age-hardened must be specified at order stage because the mechanical properties differ significantly between conditions and the design calculation must match what the delivered material provides. Confirm EN 10204 3.1 mill test certificates covering chemical composition, mechanical properties, and heat treatment records. For marine and offshore applications, third-party inspection from accredited agencies is typically required by project specifications and should be arranged before production rather than requested at delivery.
Conclusion
Monel K500 bar is selected for marine applications where standard corrosion-resistant alloys lack the mechanical strength for the component’s load requirements and where high-strength alternatives lack the seawater corrosion resistance that the service environment demands. The combination of precipitation-hardened strength and Monel-family corrosion resistance makes it a practical specification for shafts, fasteners, pump components, and offshore structural hardware in continuous marine and seawater service.
